Cavalon – Now Accepting Orders for Type Certificated Cavalon with Rotax 915is Fuel Injected Engine!!!
The first side-by-side gyroplane of AutoGyro is a real masterpiece in design, technique, and innovation and overcomes all restrictions and limits. Seated side by side it presents its pilot and passenger an incomparable dimension and comfort.
As a side-by-side model, the Cavalon expands the product range of the AutoGyro product line and offers a huge variety of features. Due to its big tank volume, the Cavalon handles great distances easily and always offers everyone the perfect position thanks to its individually adjustable seats and pedals. From the bottom to the top every wish is fulfilled, the interior offers plenty of room for pilot and passengers, available options include a heated cockpit or heated seats with lumbar support, comfort grip control sticks and if that’s not enough we also offer a Garmin G3X Touch suite on the panel. Comfort, style and a whole lotta fun too!!!
Cavalon Kit Pricing Starts at $130,000
PC Cavalon Pricing Starts at $140,000
All pricing is dependent on Current Euro to US Dollar Exchange Rates
| Technical Data | |
|---|---|
| L X W x H (excl. rotor) | 15.27' x 65.85' x 9.1' |
| Rotor length | 27.3 ft / 27.95 ft. / 28.6 ft |
| Empty weight | 715 lbs |
| Max. Take-off Mass (MTOM) | 1232 lbs |
| Engine | Rotax 915 IS1 |
| Takeoff distance, wheels up*2 | 357 ft |
| Takeoff distance to clear 45 ft | 854 ft |
| Max endurance *3 | up to 6 hrs |
| Max range*4 | up to 360 miles |
| Cruise speed | 55-110 mph |
| Max speed (Vne) | 120 mph |
| Cruise 70% power setting, MTOM | 100 mph |
| Fuel capacity | 26.4 US gallons |
| Comply with | BUT (Germany), Section T (UK), ASRA (Australia), CCAR-21 (China), USA Primary Category |
Technical data can vary regarding country-specific legal requirements and is also depending on propeller/rotor/fuel and aircraft configuration/equipment. Always refer to the Pilot's Operating Handbook.
1 914UL engine variant only for special orders, data available separately
2 560kg take-off standard weight on short grass, ISA conditions
3 Typical aircraft configuration applies: 1 pilot (80 kg), 40 l fuel, 2000 ft MSL
4 Typical aircraft configuration applies: 1 pilot (80 kg), max fuel, 2000 ft MSL

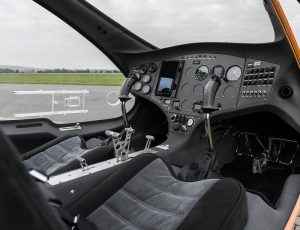

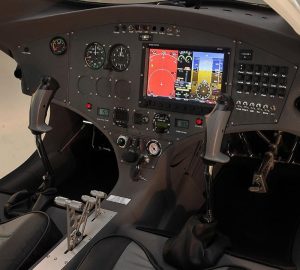

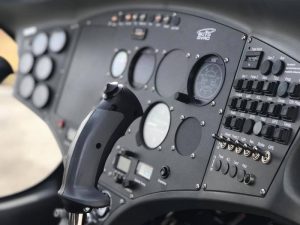

Cavalon Cockpit Options
Cavalon Seating Options
Cavalon Compass Options
Cavalon Wheel Pant Options

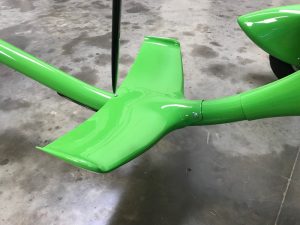

Keel Tube Fin

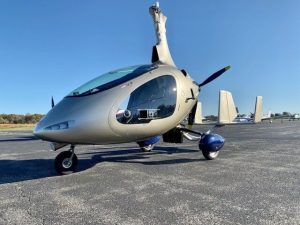

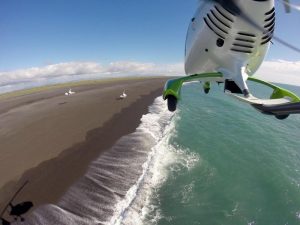

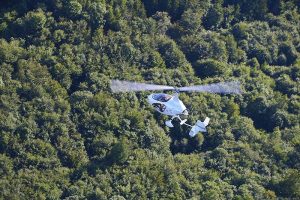

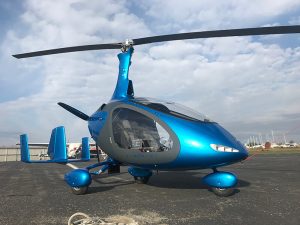

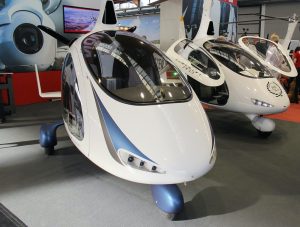

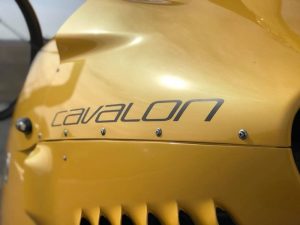

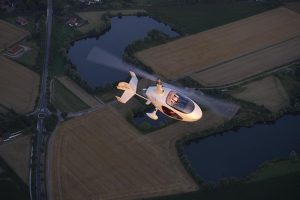

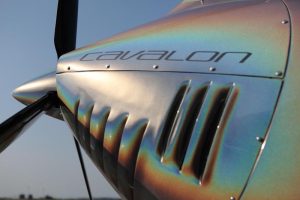

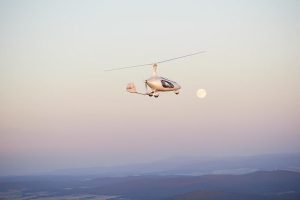

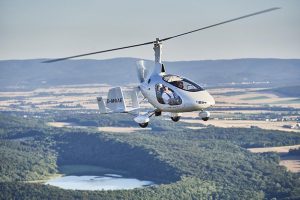

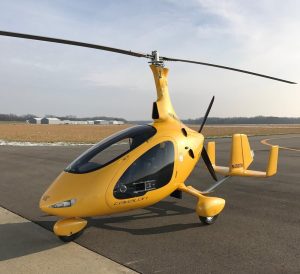

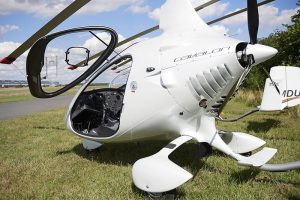

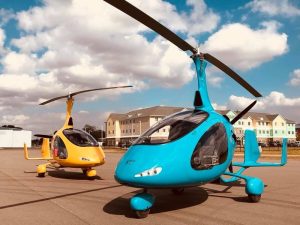

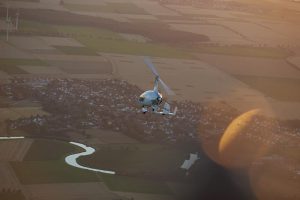

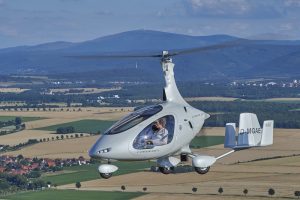

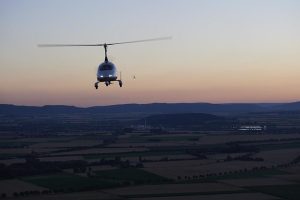

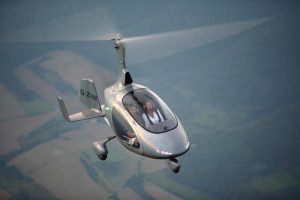

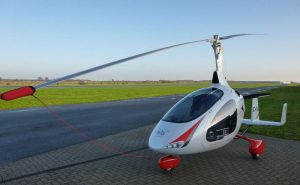

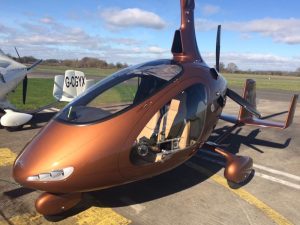

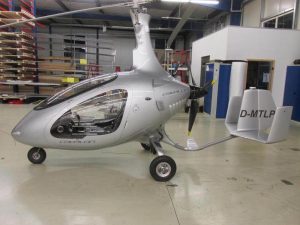

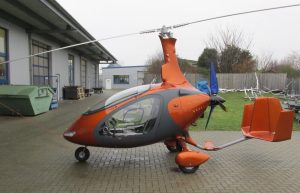

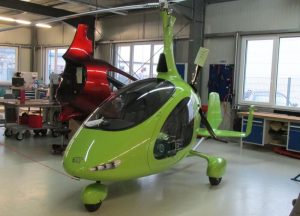

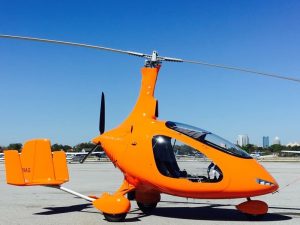

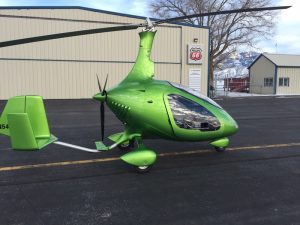

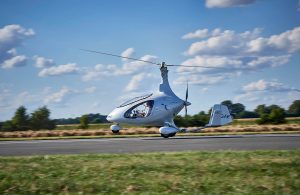

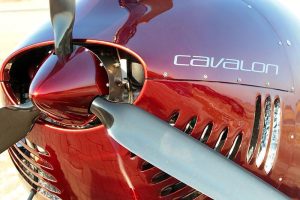

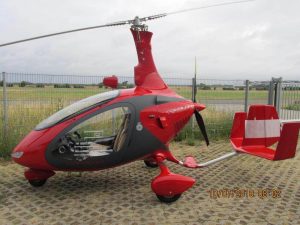

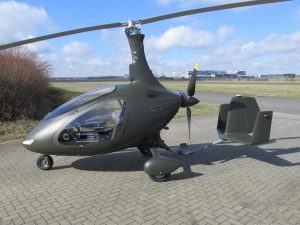

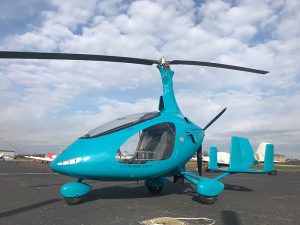

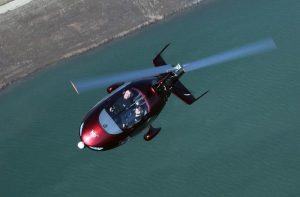

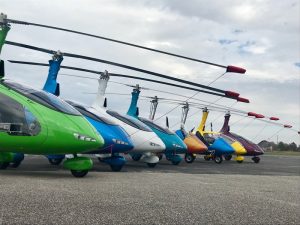

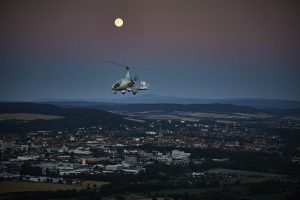

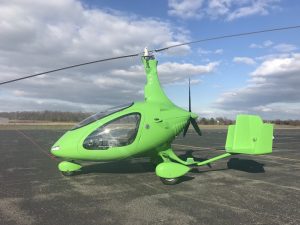

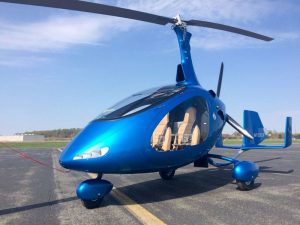

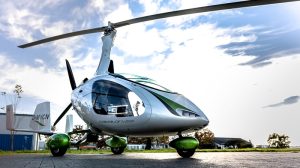

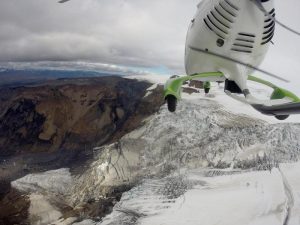

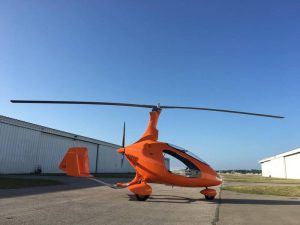

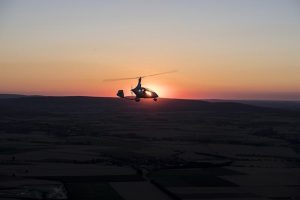

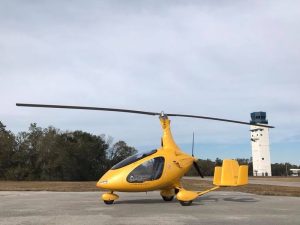

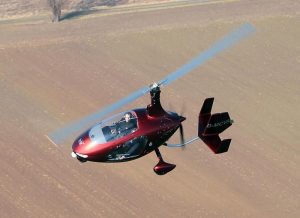

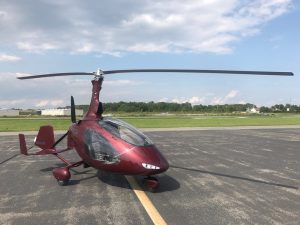

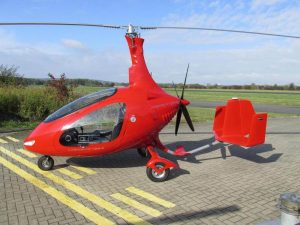

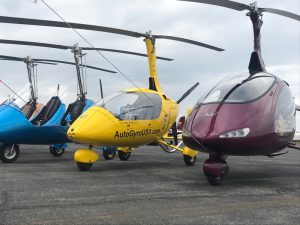

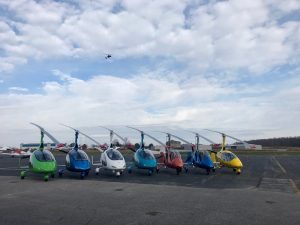

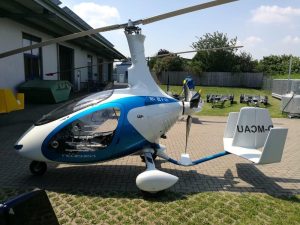

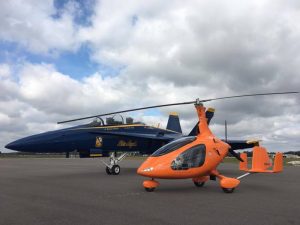

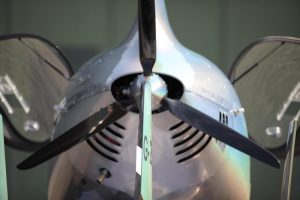

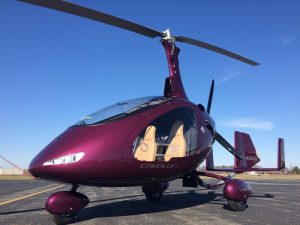

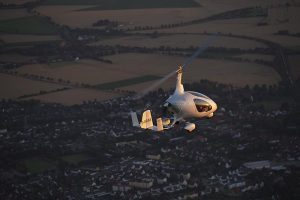

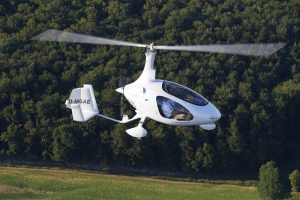

Cavalon Photos
