Calidus
Calidus – Factory Built or Experimental Amateur Built Kit Available
Just get on board, fly away, fly to the horizon and enjoy the never-ending vastness – that’s how your dreams come true. Feel the sky and be part of it: The Calidus guarantees great experiences with the highest comfort and maximum safety. We are proud to offer the Calidus as Factory Built and also as a KIT. Order yours today!
- Engine: Rotax 912ULS (optional Rotax 914 (turbo) 115 HP available), or newly released Rotax 916iS 160HP
- Rotor: 8.4 Extruded Aluminum
- Frame: Stainless Steel E-polished
- Firewall Between engine and cabin
- Pneumatic pitch trim, roll trim, and rotor brake
- Pneumatic assisted pre-rotor
- Cockpit ventilation
- Optional: Cockpit heating
- Optional: Summer Canopy
Calidus KIT Pricing Starts at $105,000
Factory Built Calidus Pricing Starts at $110,000
All pricing is dependent on Current Euro to US Dollar Exchange Rates
| Technical Data | |
|---|---|
| L X W x H (excl. rotor) | 17' x 6' x 9' |
| Empty weight | 540 lbs – 650 lbs |
| MTOW | 992-1234 lbs |
| Engine | Rotax 912ULS (optional Rotax 914 (turbo) 115 HP available), or newly released Rotax 916iS 160HP |
| Takeoff distance *1 | 295' | 230' |
| Max endurance *2 | 5.0 h | 4.4 h |
| Max range *2 | 373 mi | 326 mi |
| Cruise speed | 86 knots (100 mph) |
| Max speed | 105 knots (121 mph) |
| Fuel capacity | 18.5 US gallons |
*1 typical aircraft configuration, 1 pilot (175 lbs), 10 US gal fuel, 2000 ft MSL
*2 typical aircraft configuration, 1 pilot (175 lbs), max fuel, 2000 ft MSL
Technical data can vary regarding country-specific legal requirements and is also depending on propeller/rotor/fuel and aircraft configuration.

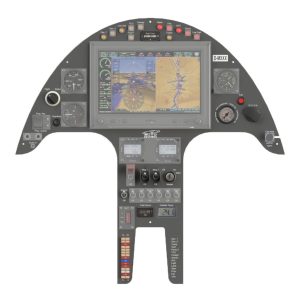

Calidus Cockpit Options
Factory Built Calidus: Ready to fly!
“Factory built aircraft are now a reality here in the USA. This represents
the culmination of many years of hard work and perseverance by the team here in the USA and back at base in Germany too, we’re over the moon.”
Calidus Photos
